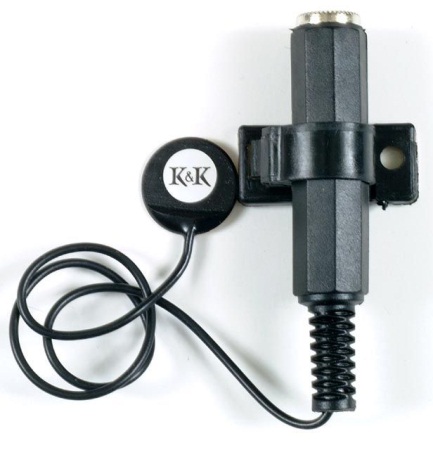

K&K Big Shot Multi-Use 3/4" Single Head Pickup - External Jack BIGSHOT

Features:

The Big Shot is a single-head piezo pickup, especially designed for bigger instruments with low mechanical resonance. The extra strong output signal makes it a versatile choice for a variety of instruments. These include instruments made of relatively thick material, such as the sound board of a piano. It is considerably harder to induce vibration on these thicker materials compared to the thin top of a violin, for example. As the piezo crystals react to corpus vibrations, a low surface vibration results in a low signal and a strong vibration creates a strong signal.

The pickup head is attached with a special double-side adhesive film, which is UV resistant to ensure safe adhesion even after years of use. It is ultra-thin and enables the harmonic frequencies to completely pass through to the pickup disk.

The frequency range is nearly linear with a slight peak in the upper midrange. This allows for great upfront sound transmission.

Technical Information
Pickup head diameter: 3/4"
Height: 1/32"
Impedance: High ohmic
Length of connection cable: 1 ft.
Jack: Quarter inch, connected mono, with nylon shell and Velcro-type attachment

Model:	BIGSHOT
Manufacturer:	K&K
